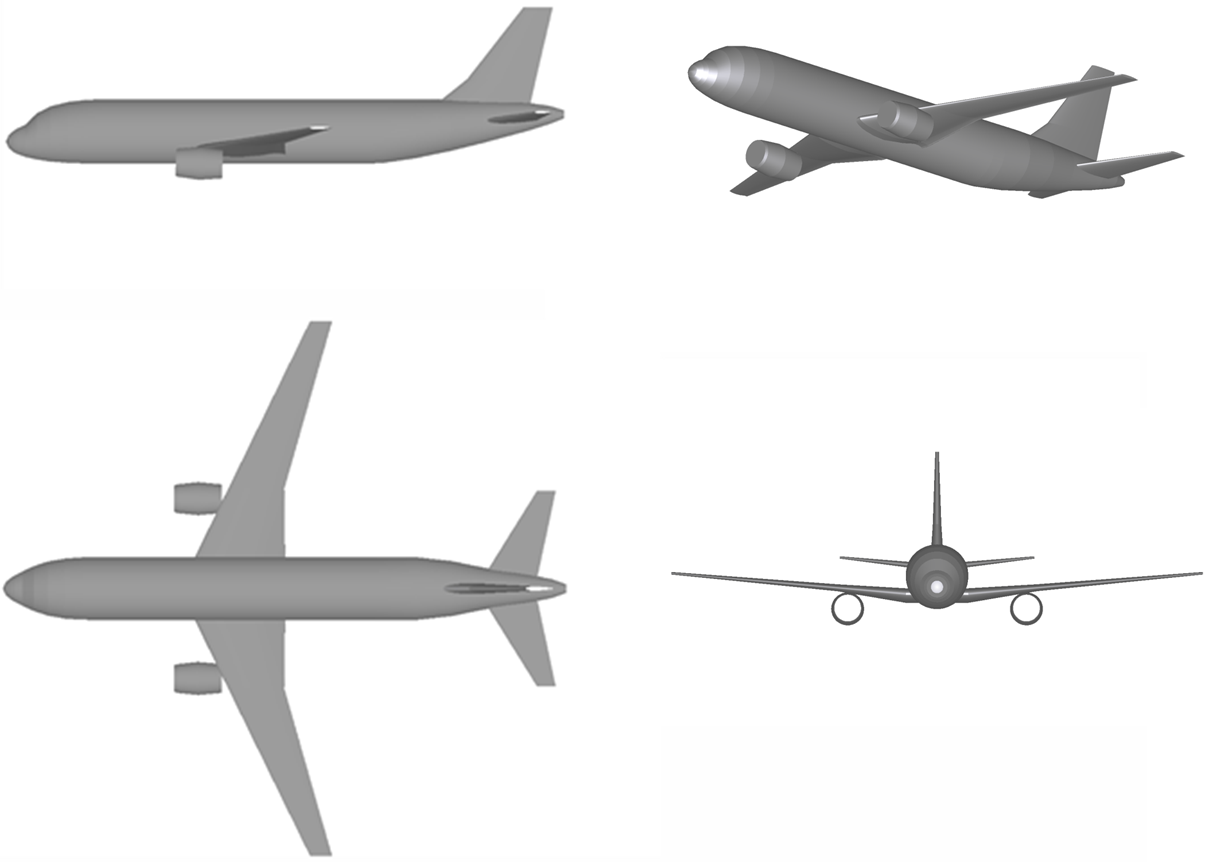

The aircraft geometry can be downladed as Step-file here: CSR 01
The step file can be viewed via open source CAD viewers (see e.g. TIGL viewer developed by DLR http://code.google.com/p/tigl/ or http://stpviewer.com/).
The step file can also be used for detailed analysis, editing or design with 3D CAD design software such as Catia or as starting point for high-fidelity post-processing computations.
General Arrangement
| Parameter | Abbr./Symbol | Unit | Value |
| Overall length | l | m | 37.49 |
| Span | b | m | 34.07 |
| Overall height | h | m | 11.055 |
Wing Geometry
see CSR-01 Wing Characteristics
Fuselage
| Parameter | Abbr./Symbol | Unit | Value |
| Length | l | m | 37.49 |
| Cross section outer width | w | m | 4.00 |
| Cross section outer height | h | m | 4.14 |
HTP/VTP Geometry
| Parameter | Abbr./Symbol | Unit | HTP | VTP |
| Area | S | m2 | 32.23 | 28.21 |
| Span | b | m | 12.46 | 6.86 |
| Aspect ratio | Λ | - | 4.82 | 1.67 |
| Taper ratio | λ | - | 0.32 | 0.32 |
| QC sweep angle | φ25 | ° | 28.47 | 35.39 |
Position of Landing Gear
| Component | Unit | x-Pos. | y-Pos. | z-Pos. |
| Nose gear | m | 5.04 | 0.00 | -1.82 |
| Outer left main gear | m | 17.69 | -3.78 | -1.78 |
| Outer right main gear | m | 17.69 | 3.78 | -1.78 |
Position of Engines
| Component | Unit | x-Pos. | y-Pos. | z-Pos. |
| Inner left engine | m | 11.41 | -5.73 | -2.00 |
| Inner right engine | m | 11.41 | 5.73 | -2.00 |
Coordinates refer to global origin at intersection of y-z-plane through aircraft nose and longitudinal centerline through fuselage mid sections.
